Series 630 Bauer Quick Disconnect

The Poly-Cam quick disconnect transition is a multi-level mechanical transition fitting. The polyethylene or pipe-quality copolymer material are hydraulically compressed into the Bauer transition fittings.

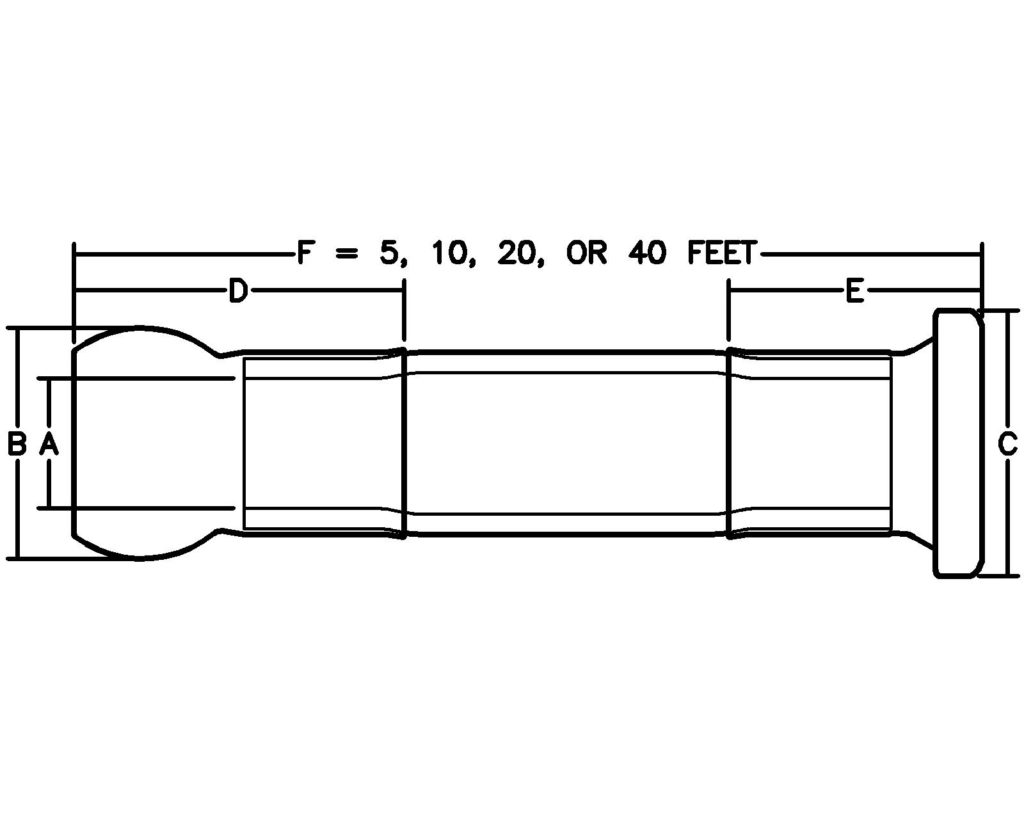

The transition spool has a male and female Bauer transition compressed onto opposite ends of the HDPE pipe. The spool is available in lengths of 5 ft., 10 ft., 20 ft., and 40 ft.

Relaxation of the pipe creates a seal to prevent leakage. Under pressure, the internal pressure within the pipe increases the sealing surface area on the barb. Under zero internal pressure, the compression and tensional strain created by the compression of the multi-level barbs are greater than the stress created by relaxation and/or thermal expansion and contraction. As the internal pressure increases, the connection between the pipe material and transition fitting increases.

  • Sizes range from 3” to 12”.
  • 3″-8″ uses Type B Bauer
  • 10-12″ uses Type A Bauer
  • Note: 3″ fittings use 90mm Bauer coupling

Submittal Page

3″-8″ Bauer Type B with Lever Ring and Female O-Ring

10″-12″ Bauer Type A with Attached Lever and Locking Ring
