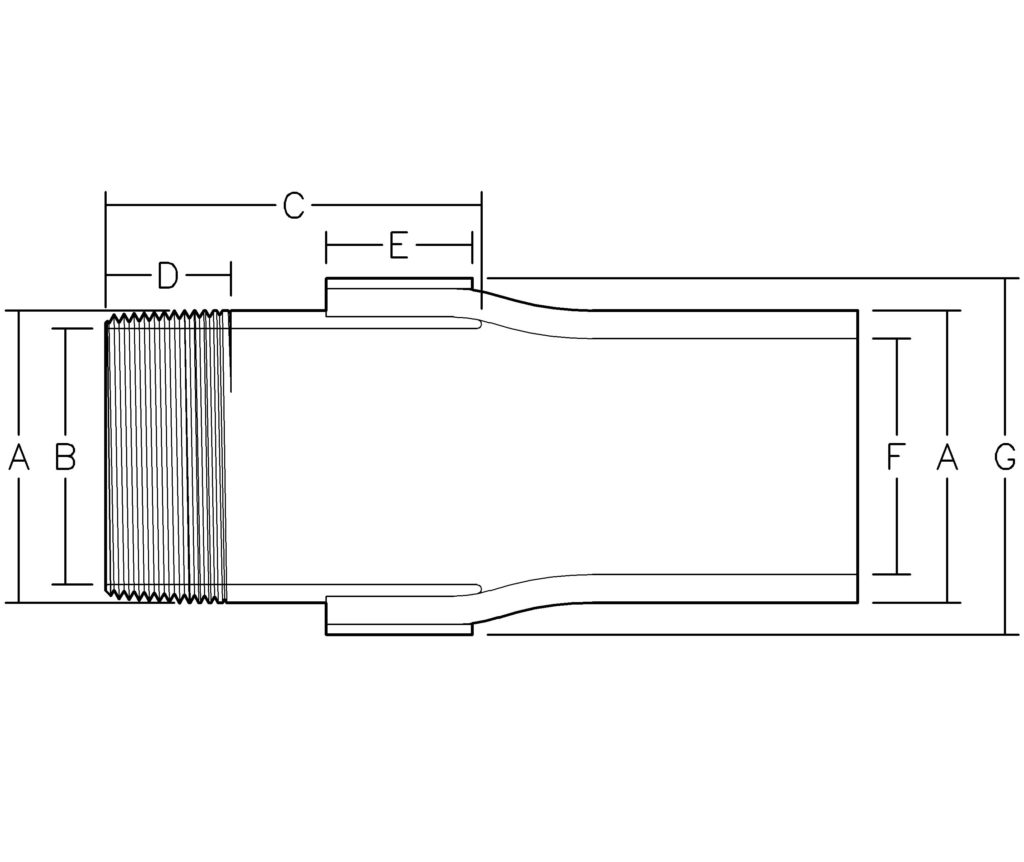

Series 862 ID Controlled Threaded Transition

Description – The Poly-Cam ID-Controlled Threaded Transition is designed to provide a smooth, interior transition between the steel pipe and the polyethylene pipe. The connection between the steel fitting and the polyethylene pipe is accomplished with a multi-level barb system and a compression ring supporting the connection. The multi-level barb system provides the sealing connection between the steel and the polyethylene pipe. The interior of the fitting contains no sharp edges in which pipeline cleaning pigs can be caught or damaged. Reinforced with a steel compression ring.

  • Sizes range from .5 to 12” NPT.
  • All National Pipe Threads are made to ANSI/ASME B1.20.1 – 2013.
